サイズ:440, 470, 500, 540
カラー:Dimgray/Blue, Dimgray/Orange(2colors)

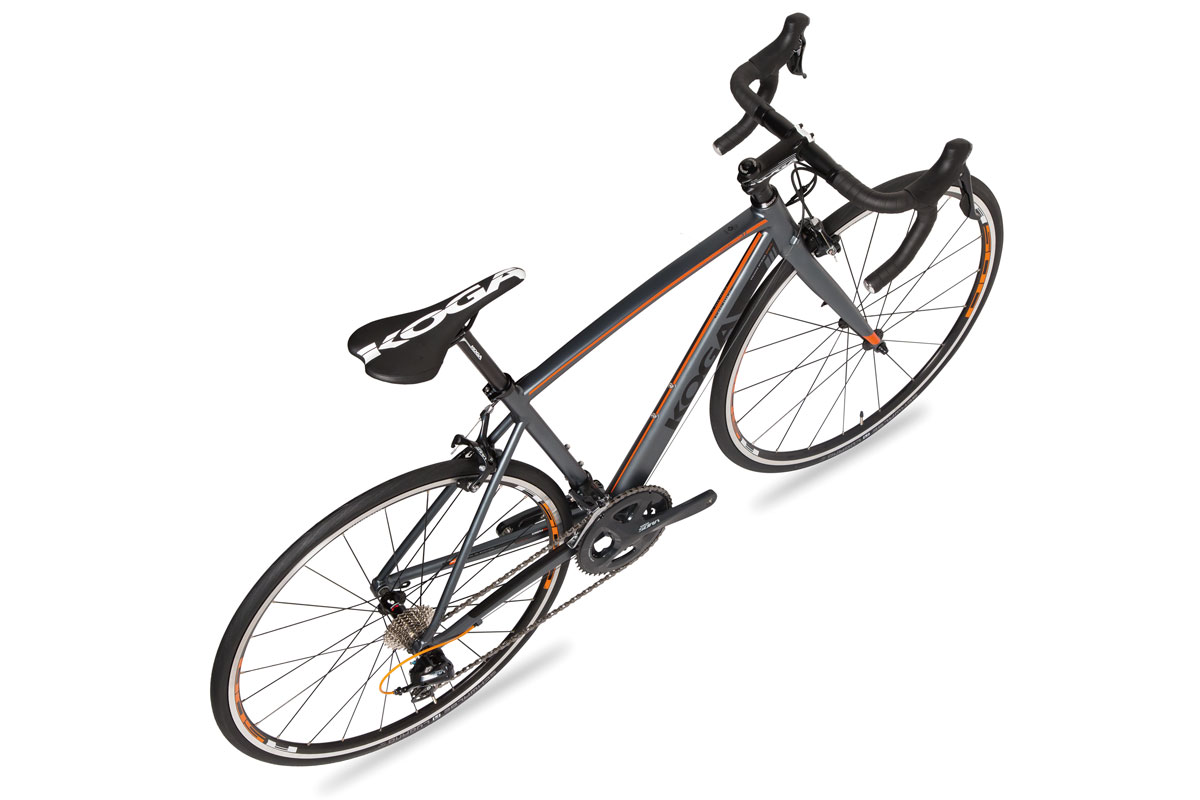

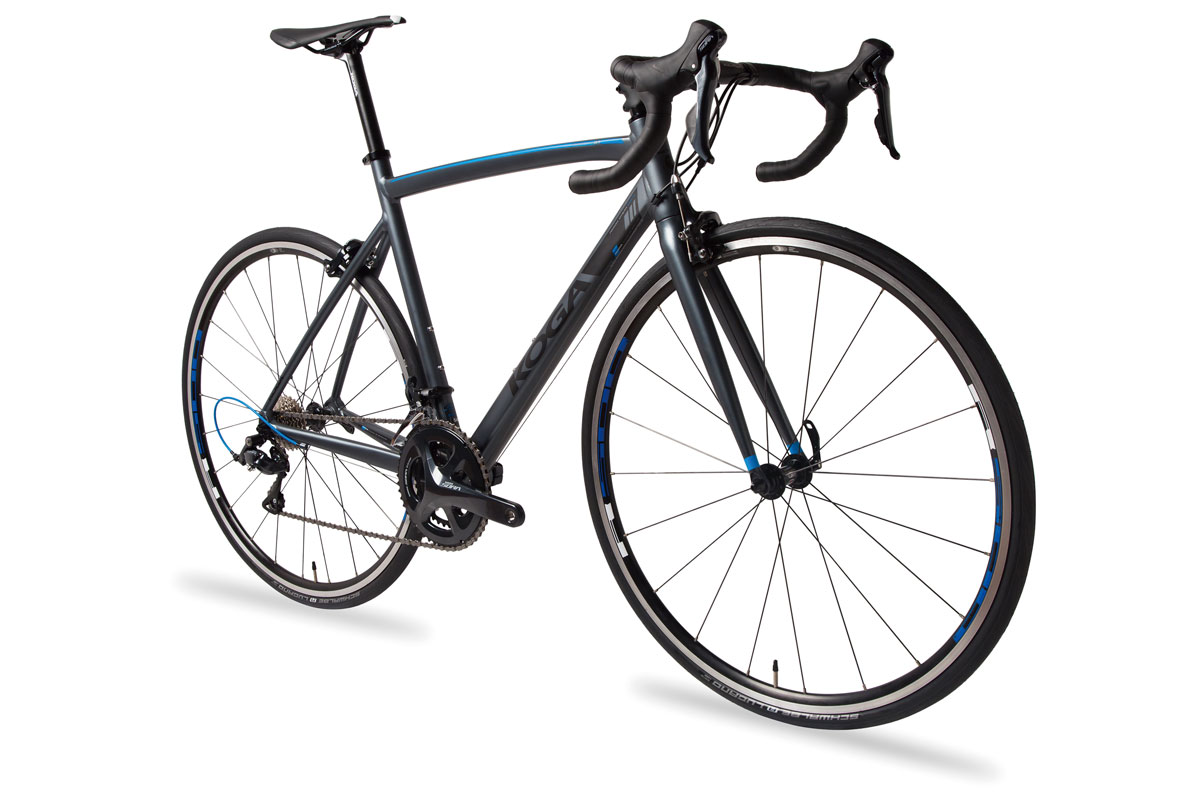

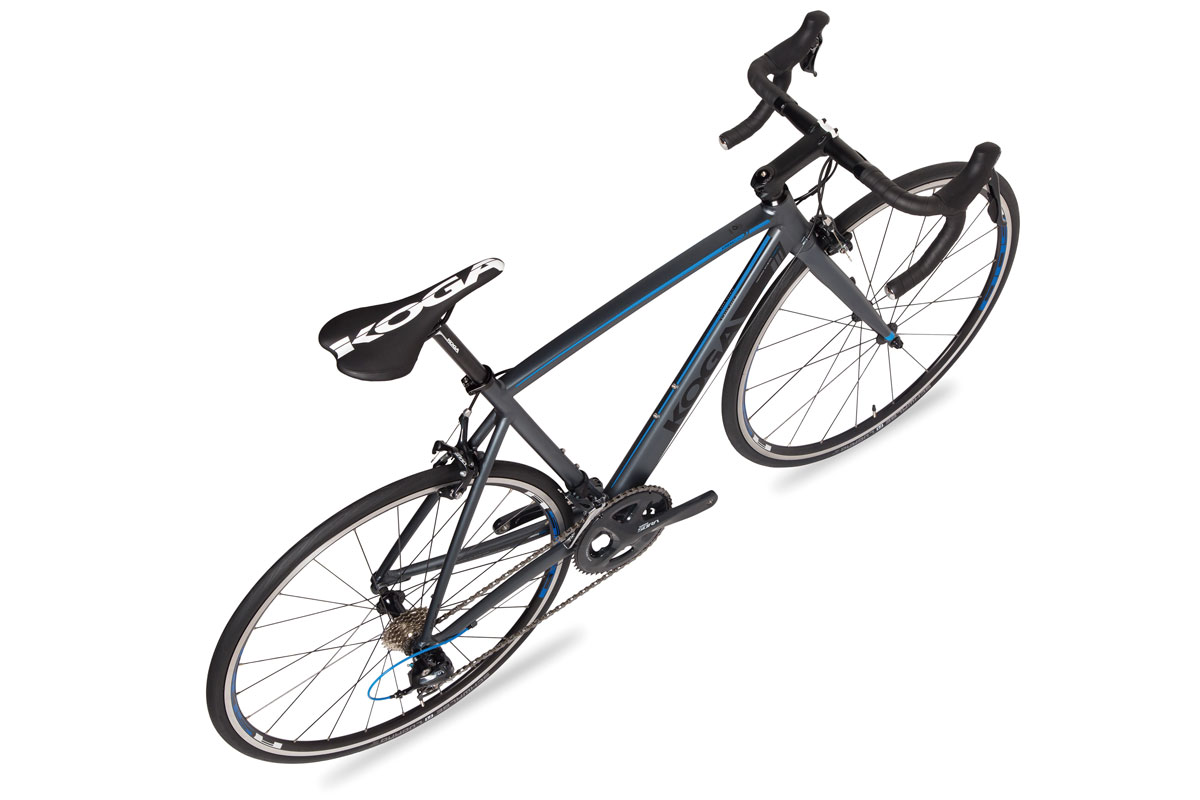

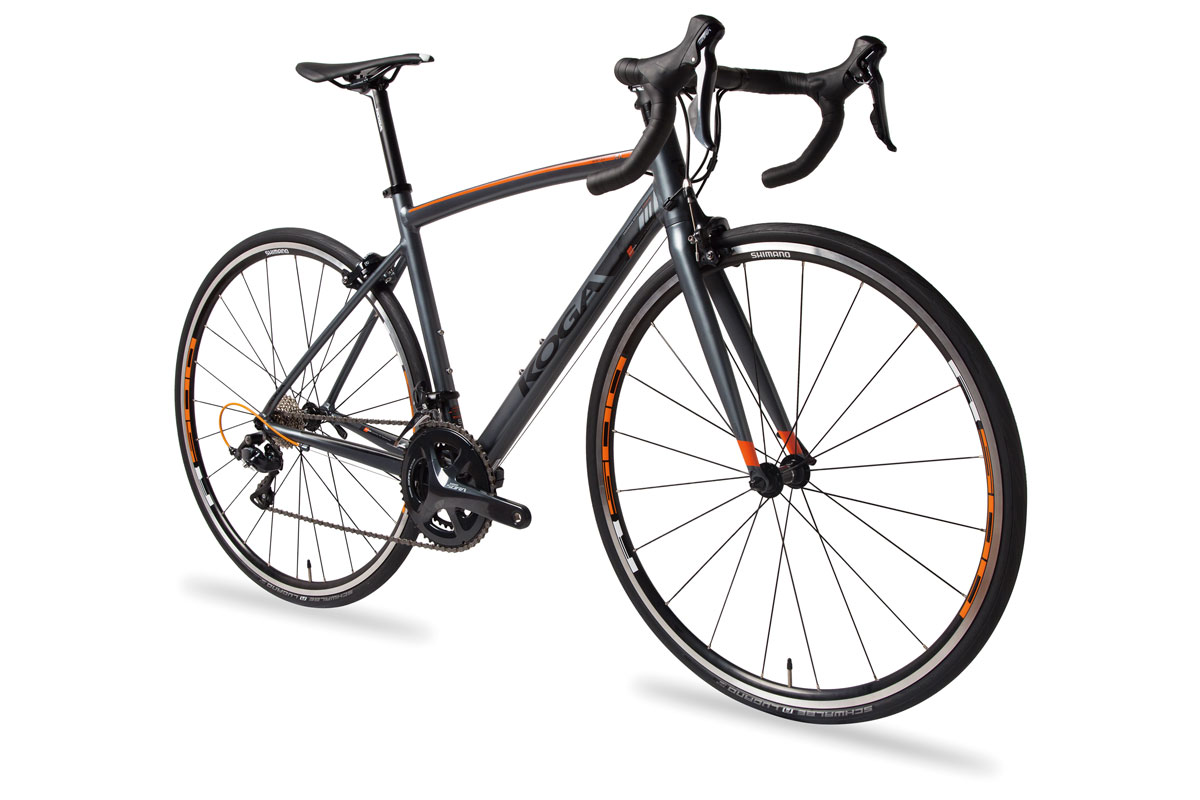

妥協無きエントリーレーシングロード アルミロードのベストセラーモデルが、New SORAをフルアッセンブルし生まれ変わった。レーシンググレーを基調としたカラーリングは、落ち着いた雰囲気と力強さを兼ね備えている。スムーズな走りと堅実な仕上がりを纏ったこのバイクが、エントリーロードだと一目で理解する者はいないだろう。何故ならオランダ本国ではUltegra完成車として販売される、ハイグレードモデルだからである。KOGA DNAが放つ独特のオーラが、乗る者全てを魅了する。
| MODEL | KIMERA AL SORA |
|---|---|
| Frame sizes | 440-470-500-540 |
| Gears | 18 |
| Color | 1. Dimgrey / Orange 2. Dimgrey / Blue |

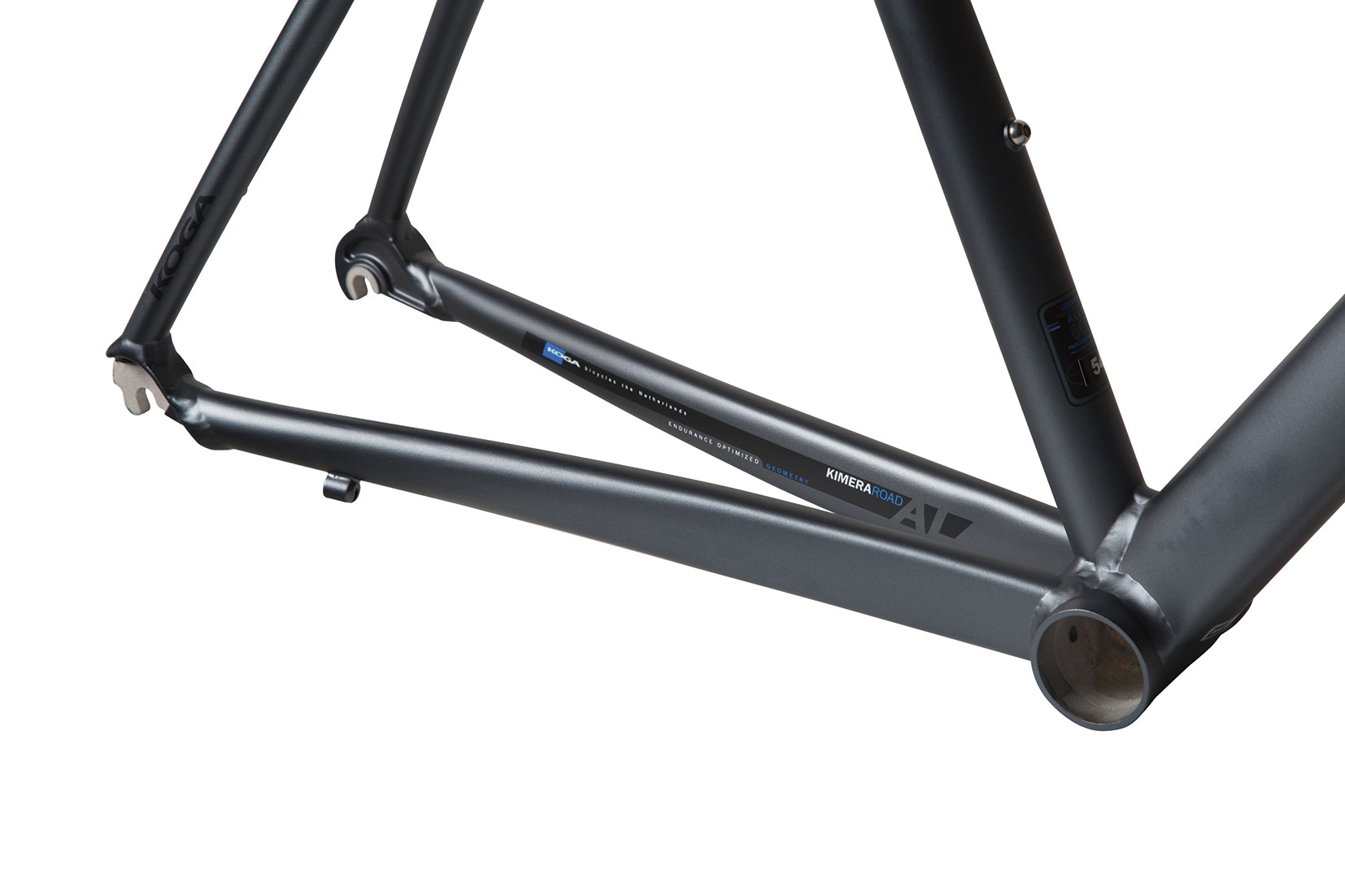

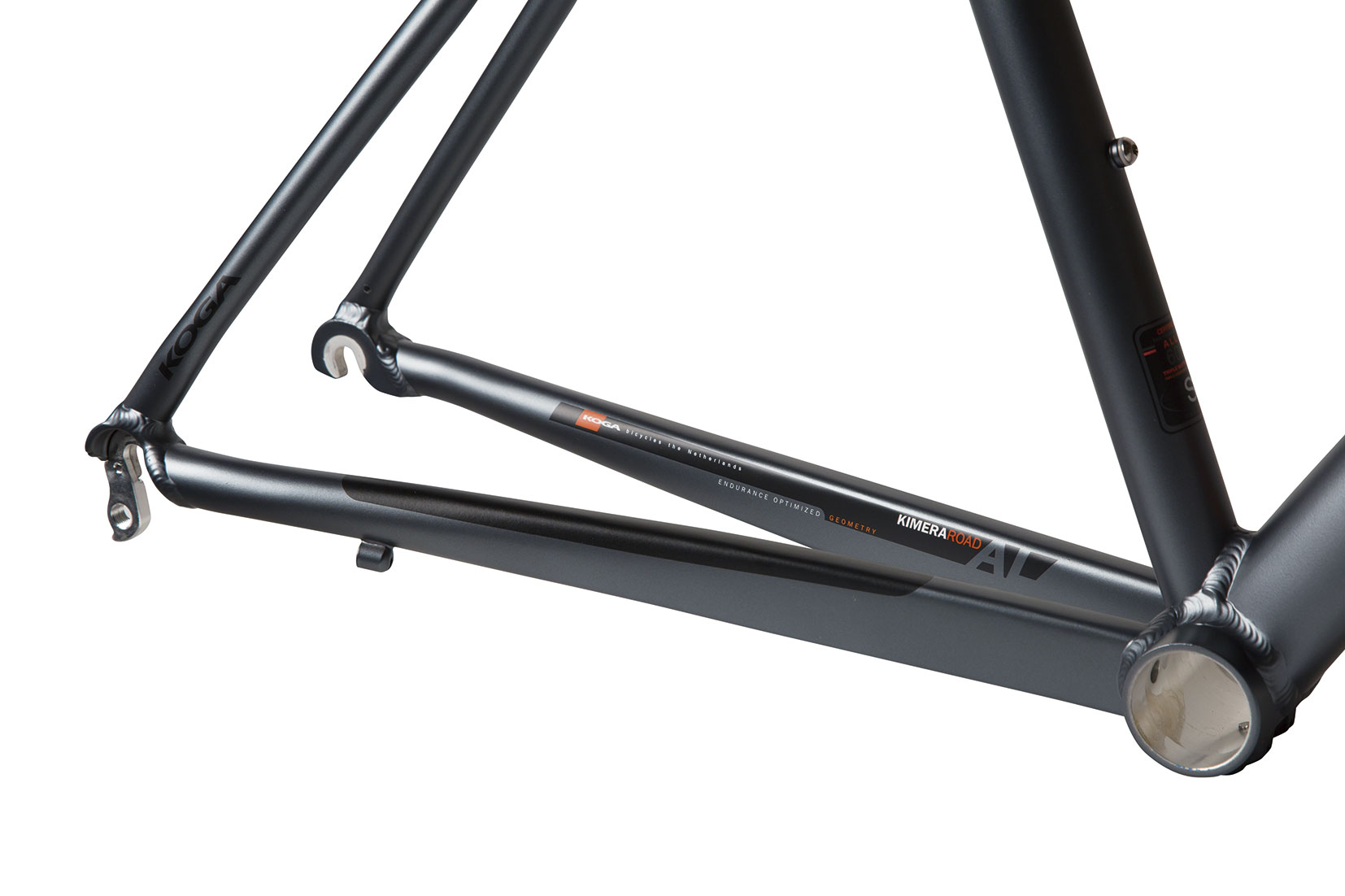

| Frame description | Completely hand-built Smooth TIG-welded frame. Exclusive tapered tubes manufactured in triple-hardened and triple-butted 6061 aluminium, Press fit BB86 |
| Front fork | Koga - Carbon/Alloy |
| Headset | NECO H-398 ( IS42/47 ) Integrated 1 1/8"/1 1/4" headset |
| Handlebar | Koga O/S double-butted alloy compact shape / 400-420 |
| Stem | Koga Alloy 3D forged 90-100 |
| Handlebar tape | Koga Comfort tape |
| Brake | shimano SORA BR-R3000 |
| Shift/Brake lever | shimano SORA ST-R3000 |
| Chain | KMC X-9 |
| Wheel set | shimano WH-R501 |
| Tires | Schwalbe Lugano 25c - Black |
| Saddle | Koga Cr-Mo rail w/embossed logo |
| Seat post | Koga AL6061-T6 Alloy Φ27.2x300mm |
| Seat clamp | Koga - Alloy |
| Crank set | shimano SORA FC-R3000 : 50x34T 165(440/470)-170(500/540) |
| Bottom bracket | shimano Press Fit SM-BB72-41B |
| Cassette | shimano 9 speed CS-HG400-9 : 11-12-13-14-16-18-21-24-28T |
| Rear derailleur | shimano SORA RD-R3000-SS |
| Front derailleur | shimano SORA FD-R3000-B |
| Pedals | - |
| Note | - |
| Weight | 9.2 kg |
| MODEL | KIMERA AL | ||||
|---|---|---|---|---|---|
| Fs | 440 | 470 | 500 | 540 | 560 |
| A | 498 | 507 | 525 | 545 | 560 |
| A-hor | 516 | 526 | 536 | 551 | 566 |
| B | 406 | 406 | 406 | 406 | 408 |
| C | 568 | 578 | 582 | 593 | 599 |
| D | 965 | 974 | 980 | 991 | 999 |
| BB Drop | 70 | 70 | 70 | 70 | 70 |
| Fork Offset | 45 | 45 | 45 | 45 | 45 |
| a° | 71.5 | 72.0 | 72.0 | 72.5 | 73.0 |
| b° | 74.0 | 74.0 | 74.0 | 74.0 | 73.0 |
| Trail | 64 | 61 | 61 | 58 | 55 |
| H T | 105 | 105 | 120 | 135 | 150 |
| Reach | 370 | 384 | 385 | 398 | 400 |
| Stack | 503 | 505 | 519 | 537 | 551 |
