※カラーリングが写真と一部異なります。
●Imitation Black のフロントフォーク内側はKOGAブルーカラー、 白KOGA ロゴになります。
サイズ:470, 500, 540, 560
カラー:Orange Stripe Black, Memorial Blue, Imitation Black (3colors)
レーシング・アルミフレームの極致 登場以来、高性能レーシング・アルミとして多大な支持を集めている A-LIMITED は今年も健在。アルミフレームの時代にトップブランドとして君臨した技術を昇華させ生まれた戦うためのバイク。ブラッシュアップされたアルミならではの走りを体感して欲しい。
MODEL NAME | A-limited 105 |
---|---|
Frame sizes | 470-500-540-560 |
Gears | 22 |
color | 1. Orange stripe Black 2. Memorial Blue 3. Imitation Black |
Frame description | Completely hand-built "extreme lightweight" Smooth TIG-welded frame.Tubes manufactured in triple-hardened and tapered triple-butted 6069 aluminium. |
Front fork | Koga - Full Carbon UD |
Headset | TANGE Technoglide IS47 (IS42/47) Integrated 1⅛"/1¼" headset |
Handlebar | Koga O/S double-butted alloy compact shape /400-420 |
Stem | Koga Alloy 3D forged 90-110 |
Handlebar tape | Koga Comfort tape |
Brake | shimano 105 BR-5800 |
Shift/Brake lever | shimano 105 ST-5800 |
Chain | shimano 11s CN-HG600 |
Wheel set | shimano WH-RS11 |
Tires | Schwalbe Lugano 23c - Black |
Saddle | Koga w/embossed logo |
Seat post | Koga AL2014-T6Alloy Φ27.2x300mm |
Seat clamp | Koga - Alloy 30.6 |
Crank set | shimano105 FC-5800 : 50x34T 170-172.5 |
Bottom bracket | shimano Press Fit SM-BB72-41B |
Cassette | shimano 11 speed CS-5800 Sprockets : 11-12-13-14-15-17-19-21-23-25-28T |
Rear derailleur | shimano 105 RD-5800-SS |
Front derailleur | shimano 105 FD-5800-B |
Weight | 8.1 kg |

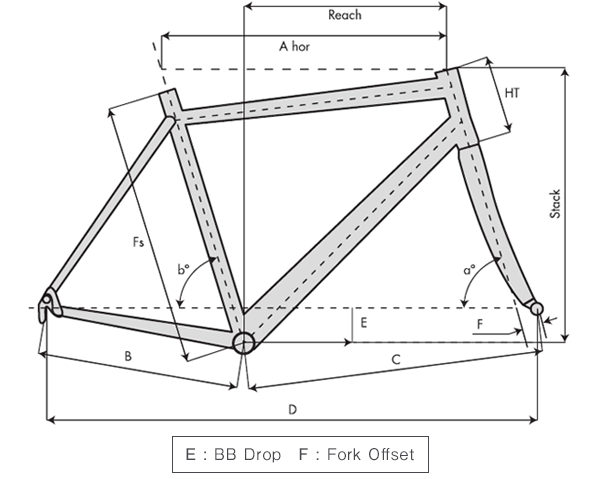

MODEL | A-Limited | ||||
---|---|---|---|---|---|
Fs | 470 | 500 | 540 | 560 | 580 |
A | 515 | 522 | 541 | 560 | 580 |
A-hor | 531 | 536 | 551 | 572 | 574 |
B | 406 | 406 | 406 | 408 | 408 |
C | 577 | 582 | 593 | 599 | 602 |
D | 973 | 978 | 989 | 997 | 1000 |
BB Drop | 70 | 70 | 70 | 70 | 70 |
Fork Offset | 43 | 43 | 43 | 43 | 43 |
a° | 72 | 72 | 72.5 | 73 | 73 |
b° | 74 | 74 | 74 | 73 | 73 |
Trail | 63 | 63 | 60 | 57 | 57 |
HT | 110 | 125 | 140 | 155 | 165 |
Reach | 384 | 384 | 394 | 400 | 402 |
Stack | 510 | 525 | 540 | 557 | 560 |
